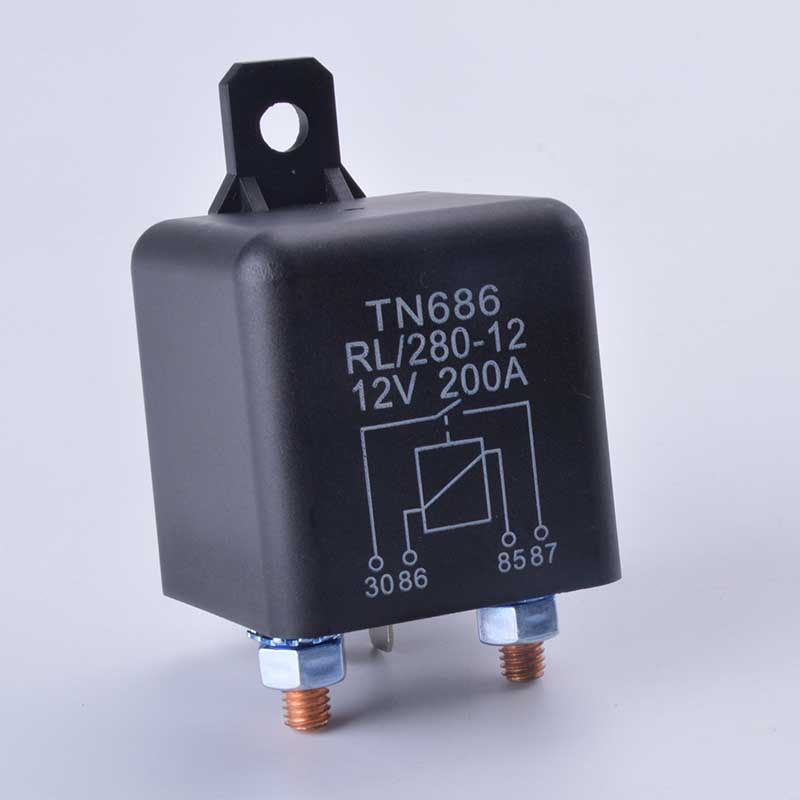

4 Pin 5-pin SPDT 250 Amp High Power On/Off Auto Starter Relay 12V Continuous Duty Relay Split Charger Contactor

Product Description :

• Nominal coil voltage: 12 V DC/ 24 V DC
• Pickup voltage: 8 V DC
• Dropout voltage: 1.2 V DC
• Maximum applied voltage: 14 V DC / 24 V DC
• Max Switching Current: 100A/120A/200A
• Max Switching Voltage: 14 V DC / 24 V DC
• Temperature Range: -30 ~ +80 degrees Celsius
• 4PIN 5PIN Customized Auto Starter Relay / High Power 200/250 AMP available

5-pin SPDT 250 Amp High Power On/Off Auto Starter Relay 12V Continuous Duty Relay Split Charger Contactor ; 4pin split charger contactor starter relay also available.

• ADVANTAGE - coil power: 1.8 W; coil resistance: 80 ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market
• Nominal coil voltage: 12V, Pickup voltage: 8V, Dropout voltage: 1.2V, Maximum applied voltage: 14V
• Heavy duty 12 volt 4 Pin SPST (Single Pole Single Throw) relay
• Large capacity: 120a high current carrying capacity, heavy duty make/break relay
• Ideal for split charging or any vehicle needing a high power relay

4 Pin High Power 200 AMP Starter Relay, 12V DC Heavy Duty Continuous Relay to Switch Power On/Off, 4 Terminal Automotive Electrical Relay Split Charger Contactor for Truck Boat Marine

Our Services :

• 1.Heavy Duty 12VDC (14V Max) 4-Terminal SPST (Single Pole Single Throw) Relay with Continuous heavy Duty Rate
• 2.This relay is normally open with 60 ohms coil resistance, its Maximum applied current carrying capacity is 120amp, high amperage needs exceed 120Amp may make this relay burnt
• 3.Application. These realys are great for many different applications, for example,this 120amp relay can be good to handle your high amperage needs;Also it is recommended for auto power switching and marine use; no more worry about the battery becomes dead when forgetting turn off the manual switch; In addition, this 120amp relay can be used to eliminate a voltage drop on a long wire run; and also can be used as battery welder;
• 4.High quality composite housings protect against harsh temperatures and severe under hood conditions,brass or copper contacts with extended wear
• 5.Package includes one set 120amp relay
•

Why Choose GS , GSZL AUTO RELAY?

• Not remanufactured or rebuilt.
• High Quality Replacement Part.
• Exact Fit for easy installation.
• 100% Brand New and tested prior to leaving the factory.

• Easy Installation

• Only less than 5 mins for installation.

• Check youtube video if you have installation problem.

• Strict Quality Control

  All of our products undergo strict quality control not just before shipping but throughout the production process. During each step of production multiple quality control checks are performed to insure each and every part lasts for years to come.

Company Information :

 4 Pin 5-pin SPDT 250 Amp High Power On/Off Auto Starter Relay 12V Continuous Duty Relay Split Charger Contactor
