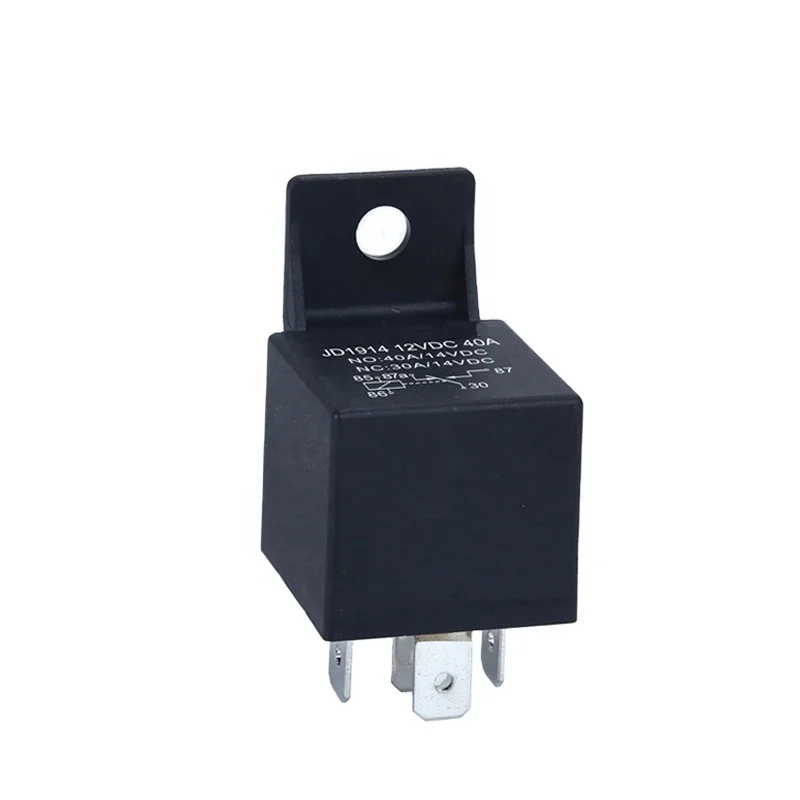

Car Relay 4 Pin 40amp SPST & 5-Pin Relay Switch 30/40 Amp

SPDT 12 Volt Automotive Relays for Auto Switches & Starters

Item Package Quantity:2

Contact Data:
Contact Material: AgSnO12
Contact Form: 1Z(C) / 1H(A)
Contact Ratings: No: 40A 72VDC
Contact Resistance: 100mMax at 6VDC 1A
Max switching Current: 40A
Max Switching Power: 560W
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10,000,000 Operations

Coil Specification:
Nominal Voltage(VDC): 12V
Coil Resistance (1.8W): 80
Max Operate Voltage (VDC): 6.5~8.0
Mix Release (VDC): 1.2~3.6
Max Applicable Voltage (VDC): 14

Automobile switches and starters wide 4 pin 5pin 12v 40Amp 80amps DC12V24V48v Car electric horn Relay

Characteristics:
Temperature Range: -30°C ~+80°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Safety Standard: CCEE
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 7ms
Release Time: 5ms
Weigh: Approx. 35g

Car Relay 4 Pin 40amp SPST & 5-Pin Relay Switch 30/40 Amp SPDT 12 Volt Automotive Relays for Auto Switches & Starters
