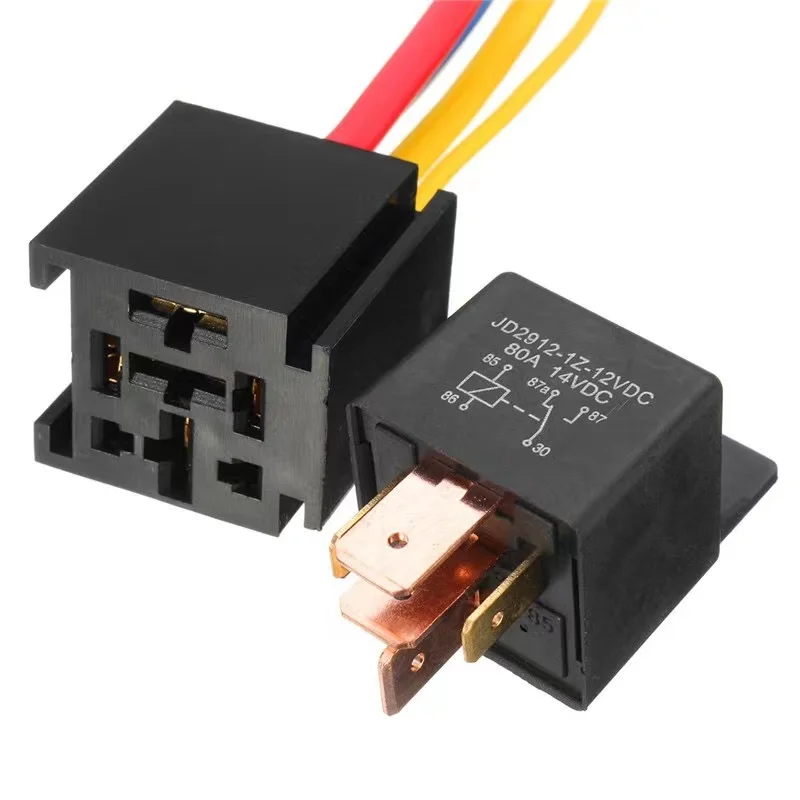

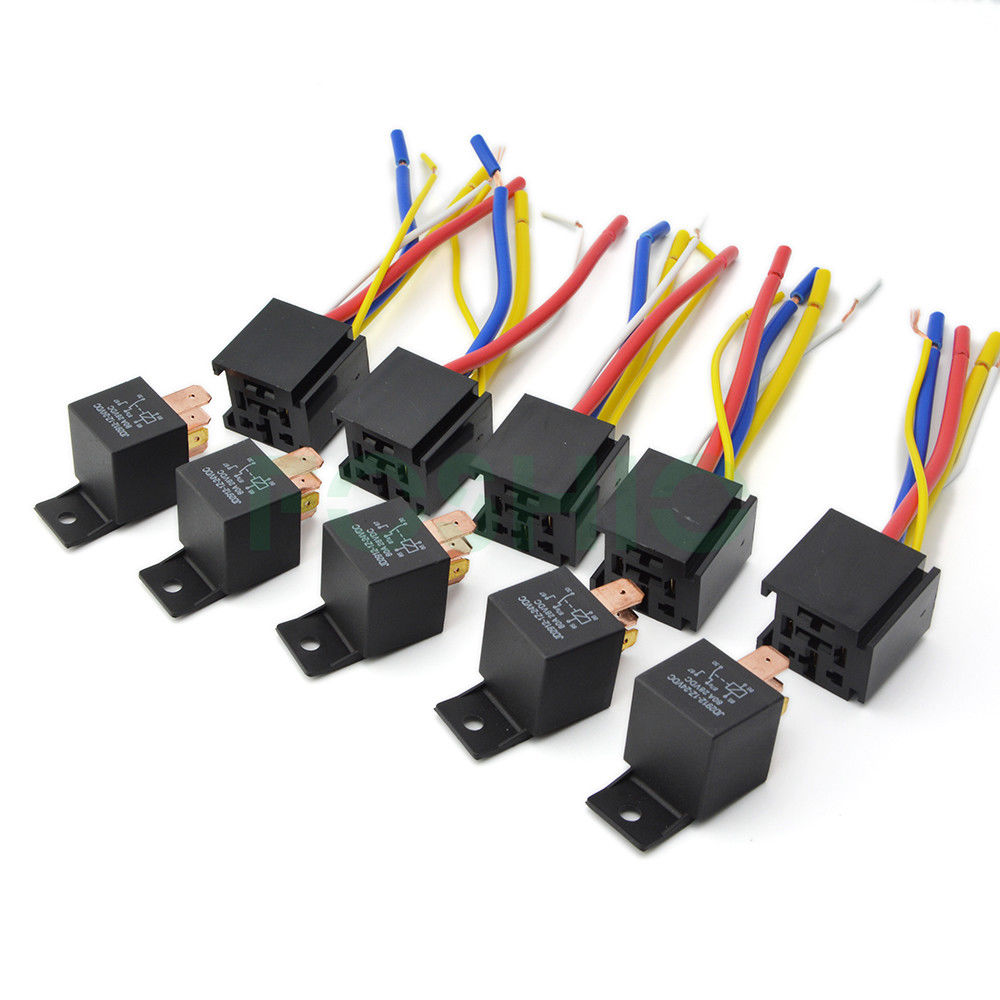

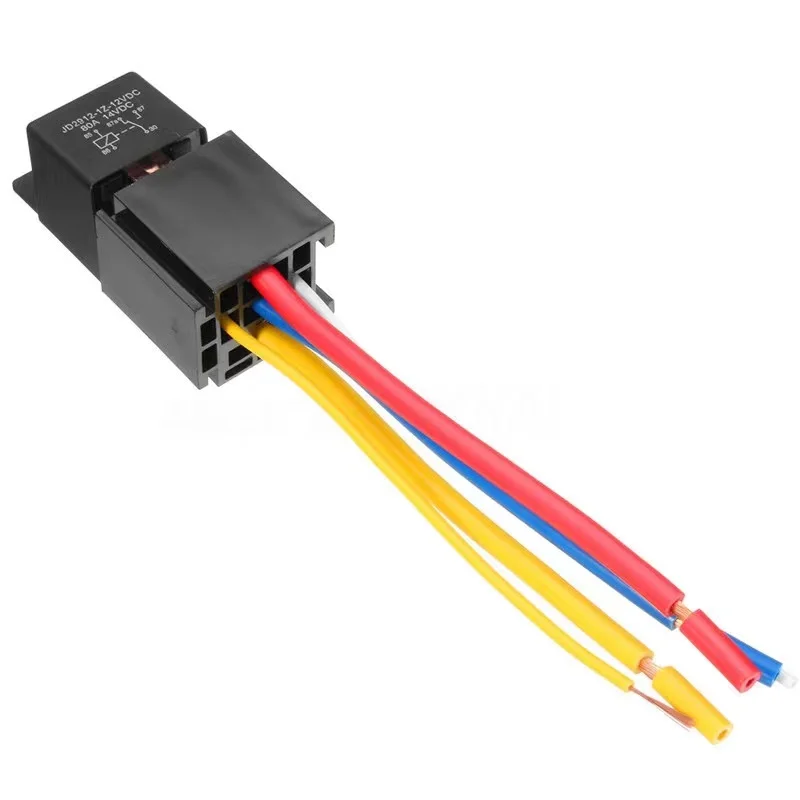

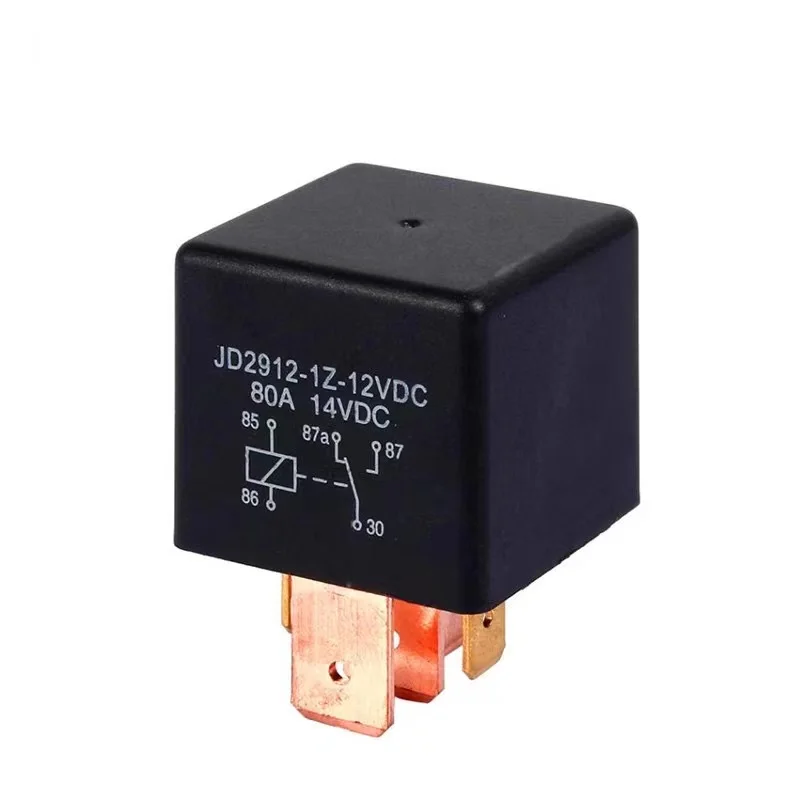

Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
1.100% Brand New And High Quality
2.Voltage: 12 V, 60 A
3.Sending Unit Thread Size: 3/8-18 NPT
4.Fan On Temperature (F): 200 degrees F
5.Fan Off Temperature (F): 185 degrees F
Part #: PC2054S,PC-2054,PC2054S,HC6105C
6. Low Power Consumption and Low Temperature, Eco design, Safe and reliable
Reference Number:FITS 265 283 305 307 327 350 383 400 396 402 427 454 472 502 260 289 302 351W 347 352 360 390 406 427 428 429 460 351C 351M 400M 273 318 340 360 361 383 400 413 426W 440 455 330 326 Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
|
Electrical Life @ rated load |
100K cycles, typical |
|
Mechanical Life |
10M cycles, typical |
|
Insulation Resistance |
100M Ω min. @ 500VDC |
|
Dielectric Strength, Coil to Contact Contact to Contact |
750V rms min. @ sea level500V rms min. @ sea level |
|
Shock Resistance |
100m/s2 for 11 ms |
|
Vibration Resistance |
1.27mm double amplitude 10~40Hz |
|
Terminal (Copper Alloy) Strength |
8N |
|
Operating Temperature |
-40oC to +85oC |
|
Storage Temperature |
-40oC to +155oC |
|
Solderability |
260oC for 5 s |
|
Weight |
32g |
|
Contact Rating |
40A@14VDC N.O. |
|
Contact Resistance |
< 50 milliohms initial |
|
Switching Power MAX |
560W |
|
Switching Voltage MAX |
75VDC |
|
Switching Current MAX |
40A |
|
Coil Power |
1.8W |
Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
Auto Relay With Wire Plastic Back Switch -12V Relay switching car truck starter relay
3/8" Thread 185 to 175 Degree 4 Pins Car Cooling Fan 12V Electrical Thermostat Switch Auto Relay Kit
