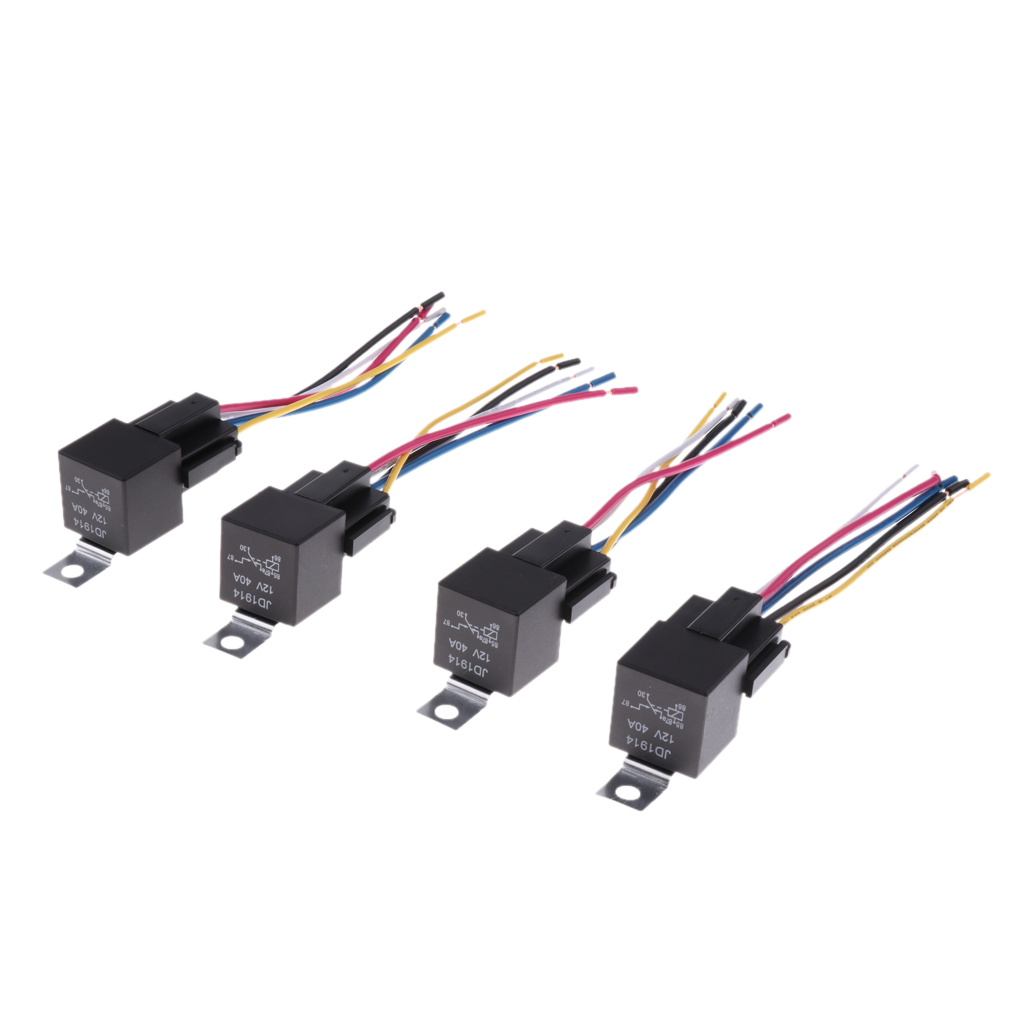

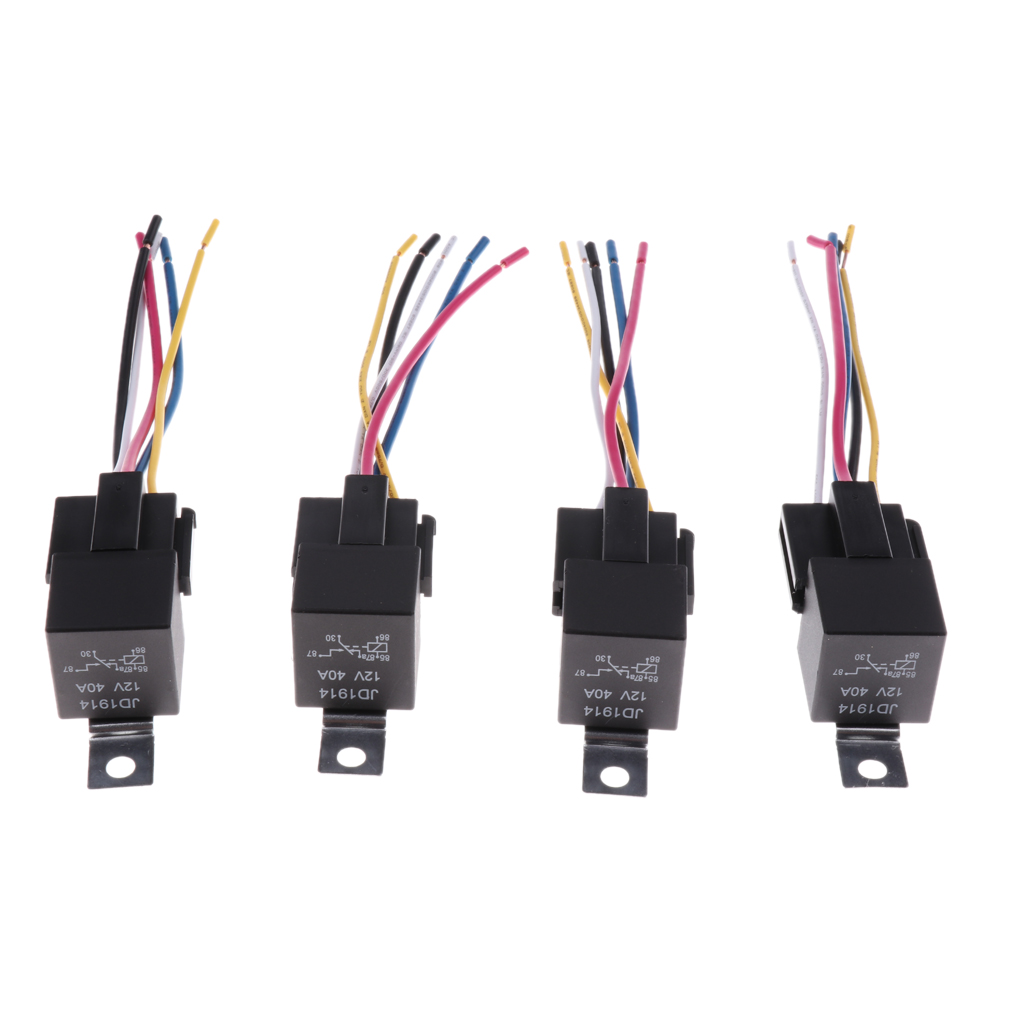

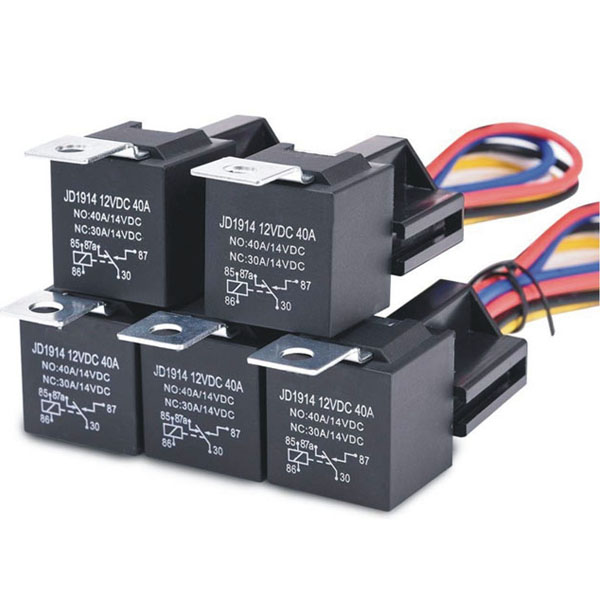

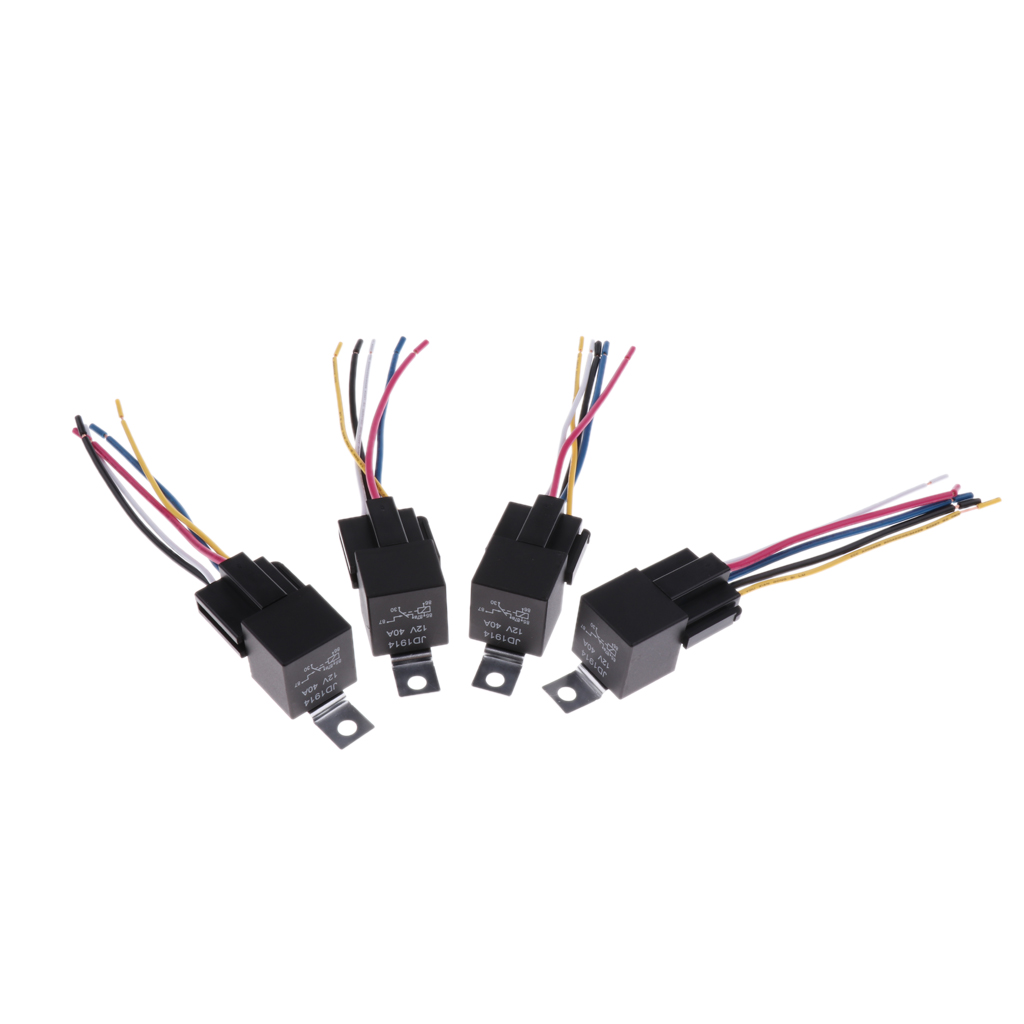

Buy Auto relay socket wire harness automobile electric cooling fan wire harness car relay kits
Buy Auto relay socket wire harness/automobile electric cooling fan wire harness car relay kits
Product Description
Relay Features:
-
40A switching capability
-
1 form A,I form B,1 form C,
1 form U,2 form A contact form
-
Various mounting terminations available
-
Sealed IP67 and dust cover types available
-
Outline dimensions: 28.0 X28.0X25.0
-
Relay Specification:
|
Contact Form |
1A, 1B, 1C, 1U, 2A |
| Contact Material |
AgSno2 |
| Max. Operating Current |
40A |
| Max. Operating Voltage |
27VDC |
| Insulation Resistance |
100MΩ |
| Rated Load(Resistive load) |
1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC |
| Dielectric Strength(Coil and Contact) | 500VAC |
| Ambient Temperature |
-40°C~+85°C |
| Operate/Release Time | 10ms/10ms |
| Mechanical Life |
1 X106 |
| Electrical Life(min) |
1 X105 |
| Terminal Type | Terminal |
Coil Ratings:
| Normal voltage(VDC) | Pick-up voltage(VDC) | Drop-out voltage(VDC) | Coil resistance(Q±10%) | Parallel resistance(Q±5%) | Equivalent resistance(Q±10%) | Power consumption(W) | Max. allowable overdrive voltage(VDC) | |
| 20℃ | 85℃ | |||||||
| 12 | 8.4 | 1.2 | 90 | - | - | 1.6 | 20.2 | 15.7 |
| 12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | 20.2 | 15.7 |
| 24 | 16.8 | 2.4 | 360 | - | - | 1.6 | 40.5 | 31.5 |
| 24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | 40.5 | 31.5 |
External Dimension:
Remark:(1)In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm; Outline dimension>1mm and≤5mm, tolerance should be ±0.3mm; outline dimension>5mm tolerance should be ±0.4mm.
