Product Description:
1. Brand new automotive relay with socket.
2. 30/40A heavy duty relays.
3. 5 Wires relay socket.
Parameters:
1. Coil Resistance:90 Ohms
2. Coil Inductance:0.8H
3. Dielectric Strength:500V RMS
4. Temperature Range:-40°C ~ 125°C
5. Inital Operating Data:7 milliseconds
6. Type:SPDT: Single Pole Double Throw
7. Color: Black
8. Voltage:12V
9. Material: ABS + Metal
10. Weight: about 57g
11. Size:
5 pin JD1914: about 5.5 * 2.7 * 2.8 cm / 2.17 * 1.06 * 1.10 in
5-wire socket: about 14.5 * 2.7 * 3.3 cm / 5.71 * 1.06 * 1.30 in
Fitment:
Hundreds of uses,such as fog lights,HID headlights, strobes, fuel pumps,stereos, air ride suspensions, fans, air horns, car alarms, remote starts and so much more.
5 Pin 12V auto relay socket holder interlocking 5 wire harness pigtail automotive Relay Kit for Auto fan cars
THE RIGHT TOOL FOR THE JOB
Common harness relays are the standard relay in custom wiring projects and many stock automotive, marine, and machine circuits. These 12V 5-pin relays are rated to handle 30A on normally closed pin 87a and 40A on normally open pin 87. That’s more than enough capacity to handle most common repairs and projects.
- 5-Pin SPDT (Single Pole Double Throw) Relay with 40A/30A High Switching Capability.
- Interlocking design relay socket harness base for easy cable management & organization.
- Pre-wired with 6" pigtail leads.
- Wire Specifications: Black - Ground (85), Red - VDC (30), White - Trigger (86), Yellow - Output N/C (87a), and Blue - Output N/O (87).
- Instruction Manual Included
5 Pin 12V auto relay socket holder interlocking 5 wire harness pigtail automotive Relay Kit for Auto fan cars
EASY INSTALLStandard 5 pin relay fit directly into existing relay boxes and simplifies the design and maintenance of custom wiring jobs. Auto relay socket 5pin 5 wire harness relay kit |
PIGTAIL INCLUDEDEasier to remove, more secure, and better looking than the usual rat’s nest of wires and terminals, the included 6” pigtails and sockets clean up your wiring, shorten repair times, and simplify fault diagnosis. |
SIMPLE MOUNTINGNo relay box, no problem. The mounting tab quickly mounts your relays to your firewall, roll cage, fender, or switch box. And the sockets, with their interlocking side slots, make it easy to group and mount several relays together. |
THE RIGHT SIZEFrom light bars to fishing lights to key-less entry systems, these 40/30A at 12V relays are more than capable of handling most automotive, marine, and off-road wiring projects and repairs. |
SIMPLIFY YOUR WIRING PROJECT
There’s nothing worse than trying to pull the back terminal off a firewall mounted relay. Ditch the terminals and the needle-nose pliers with our included sockets and pigtail wiring. The sockets, with their interlocking sides, help keep your relays secure and orderly. And, the color-coded pigtail wiring makes it easier to identify and organize your wires during the install.
WORKS FOR YOU
Used on everything from high beam/low beam headlights to electric motors and door locks 5-pin relays can be used as a simple on/off switch or as part of a more complex power and ground control system. Thanks to their standard size and unmatched versatility, these Bosch style, 5-pin relays are some of the most useful relays available.
5 Pin 12V auto relay socket holder interlocking 5 wire harness pigtail automotive Relay Kit for Auto fan cars
Packaging & Shipping:
What's Included in the auto relay socket holder or connector ?
- (1) 5-Pin Relay Socket Harness Base
- (2) 5-Pin 40/30A Relay
- (3) Mounting Plate
- (4) Instruction Manual
-
Details & Specs

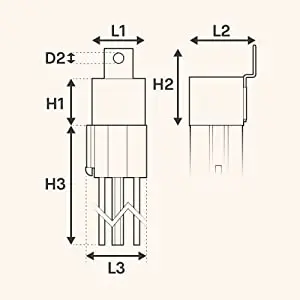

- L1: 1", D2: 1/4", H1: 1", H3: 5-3/4", L3: 1-1/4", L2: 1-1/4", H2: 1-5/8"
- MPN: EPS175R
