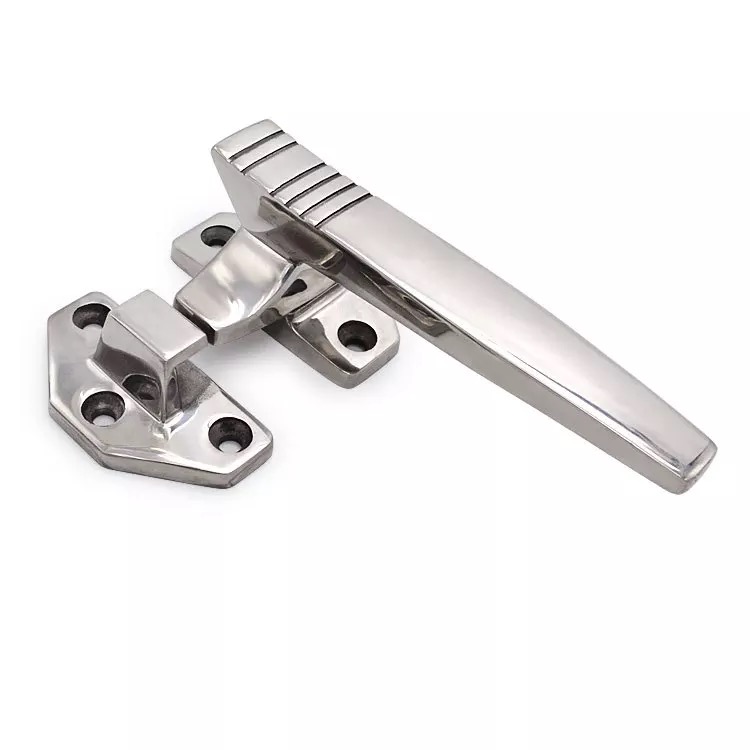

Oven Door Handle, Microwave LATCH Handle, Refrigerator Door Handle

Custom Shaped Handles

A Custom Handle made from Profiles, Shapes and sometimes Special Shaped Tubing, can be used as Appliance Handles, Basket Handles, Machine Handles, Stainless Steel Handles, Lifting Handles, Pull Handles, Tool Box Handles and much more.

A Custom Shaped Handle, can also be made to telescope as 2 Profiles, Special Shapes or Mouldings, sliding in or out of each other. Tooling costs are typically required though you may find something to work for you on this basis in the print section below.

Custom Handle Prefinishing

Prefinishing can be supplied as we provided on print #193 shown below for Microwave Handles. This Microwave Handle that did not telescope, had a Laminated Woodgrain Vinyl applied to the steel before our forming was done. The inside of the handle was prepainted as well. Oven Handles are another common use for Profiles, Channels and Special Shapes used to become Handles. Another frequently used handle is a non-telescoping Oven Handle which may have special end fabricating and polishing done to it. Lower volume handles in these styles are usually post finished due to minimum orders required for pre-finished metal.

In regards to prepainted coatings and other prefinishes and post fabricating, let`s go to a Basket Handle component. This handle is a single length of a profile or moulding. It is produced in decorative prepainted steel. This Decorative Handle is then bent in a secondary operation into a short U-type frame, for a partial radius segment at the top where a hand is placed with the ends of the profile staying straight. All this is done to a prefinished part and the paint still holds up. The ends of these Decorative Handles used for baskets have special inline end fabrication with a radius cut end and holes for attaching to the basket. If the handle was not straight at the ends but just a partial radius segment only, the bending into the segment could have been done inline as well.

Handles we manufacture can be manufactured from Pre-Finishes such as: Prepainted, Preplated, Gavlvanized, Aluminized, Preanodized, Prepolished, Prelaminated Vinyl and more. Base Raw materials can be: Steel, Stainless, Aluminum, Brass, Bronze, Copper, Clad, Embossed, Perforated, Alloys, and more. In some cases you may find a handle we can produce that will have a polished stainless profile used as a cladding to slide firmly over an aluminum handle base such as print #226-Z below. With low volumes, access to prefinished metals may be difficult to obtain. In those cases Post Finishing may be provided or you may decide to use a prefinished metal that isn`t hard to obtain with prefinishing such as Tin Plate, Galvanized, Aluminized, etc.

Inline Fabrication can be provided to the Roll Formed Handles, such as: Holes, Slots, End Fabricating, Swaged Ends, Cut-to-length, Radiused Ends, Dimple Free Ends, Shear Forms, Ring Bending, Notches and more. Secondary operations and special assemblies can also be provided such as plastic connectors or snap locks as mentioned previously. For more information about Telescoping Tubing please use the links above. Contact us today for a quote on a Custom Handle made from Profiles, Shapes and sometimes Special Shaped Tubing for use as Appliance Handles, Basket Handles, Machine Handles, Stainless Steel Handles, Lifting Handles, Pull Handles, Tool Box Handles, Decorative Handles, and much more.

Profiles & Shapes Page

Metal Roll Formed Handles produced by GS HARDWARE,CHINA have been made from either Tubing or Custom Handles utilizing Profiles and Shapes. Handle Tubing is produced in a Lock Seam or Open Seam Style in telescoping and as a single tube. Names of these handles range from the single tube form such as Mop Handles, Broom Handles, Casket Handles and in 2 tube telescopic form such as: Paint Roller Handles, Extendable Handles, Extension Handles, Telescopic Handles, Telescoping Handles and more. A Custom Handle made from Profiles, Shapes and sometimes Special Shaped Tubing, can be used as Appliance Handles, Basket Handles, Machine Handles, Stainless Steel Handles, Lifting Handles, Pull Handles, Tool Box Handles and much more.

Parts are produced to order and stock reserve only kept for large blanket order shipping releases. Existing samples may or may not be available. Prototypes for large orders are feasible.

PDF  |  GS93 |   CAD File	PDF  |  GS58 |   CAD File
PDF  |  GS83 |   CAD File	PDF  |  GS82 |   CAD File
PDF  |  GS-81A |   CAD File	PDF  |  GS-81B |   CAD File
PDF  |  GS-80B |   CAD File	PDF  |  GS-80 |   CAD File
PDF  |  GS226 |   CAD File	PDF  |  GS226-Z |   CAD File
PDF  |  GS87 |   CAD File	PDF  |  GS86 |   CAD File
PDF  |  GS88 |   CAD File	PDF  |  GS84 |   CAD File
PDF  |  GS-DS24 |   CAD File	PDF  |  GS89 |   CAD File
PDF  |  GS98 |   CAD File	PDF  |  GS90 |   CAD File
PDF  |  GS79 |   CAD File	PDF  |  GS78 |   CAD File
